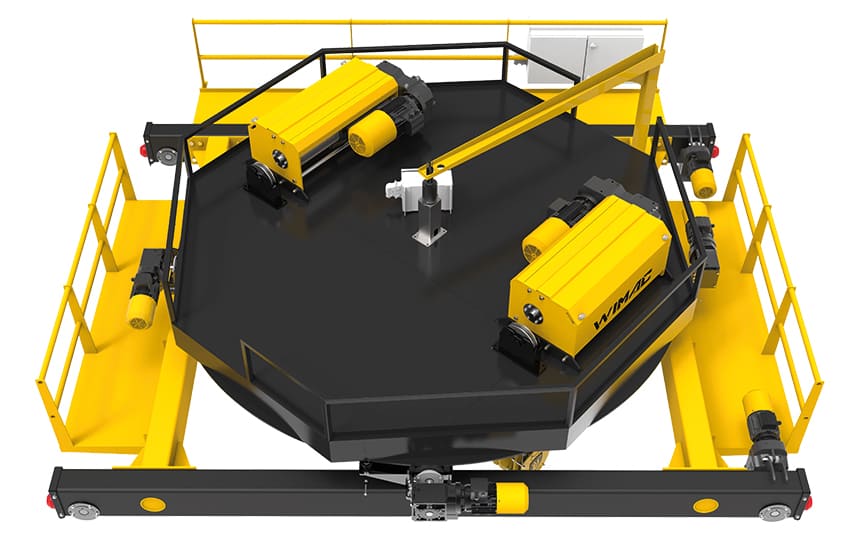

Rotating Wire Rope Hoists
As Wimac Crane Engineering, we are able to help you carry and remove loads easily and safely with our rotary hoist crane systems. As Wimac Crane Systems, you can get high performance even in the most demanding conditions with our easily assembled and easily used rotary hoist cranes.
All rotating hoist cranes we manufacture are used in accordance with FEM, DIN and ISO norms. We also use the same quality and standard in all our products with our CE and ISO certificates.
Rotary hoist cranes can be controlled by remote control systems. U and S-shaped profiles can easily walk and carry the load carrying process. It is used in the areas where monorail cranes and overhead cranes cannot be installed and gives the best performance. In addition, we use rotating hoist cranes, on our cranes we specially use best motors and best reducer elements to provide the start-stop stability.
Particularly galvanise producers, iron foundry casting producers, tanker producers are preferring tho get the high effiecient. Wimac Crane coating the rotary hoisting trolley cranes with best paints producers worldwide.
Key Features & Benefits
Additional Information
- Rotation can be limited to specific angles or continuous 360°
- Optional encoder for precise positioning
- Available with magnetic or mechanical hooks
- Custom configurations available upon request

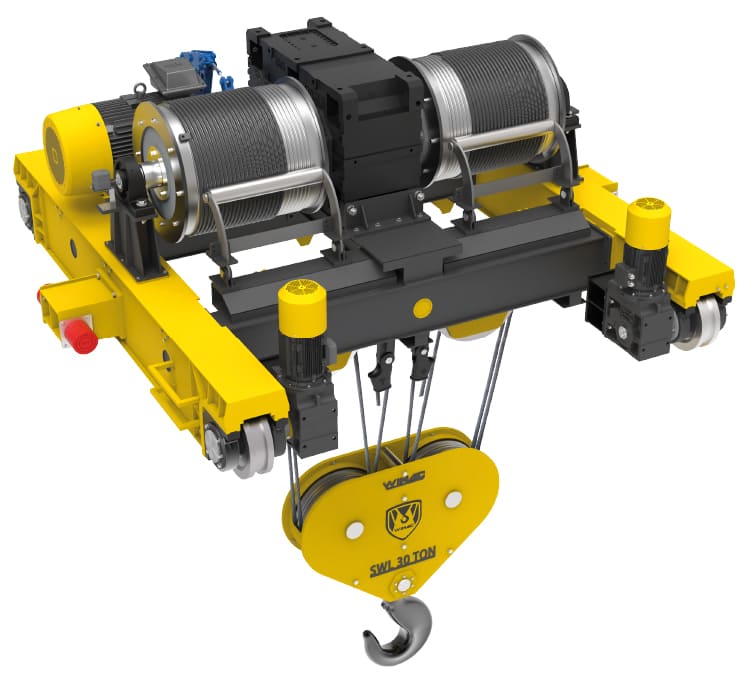

Heavy Duty Process Hoists

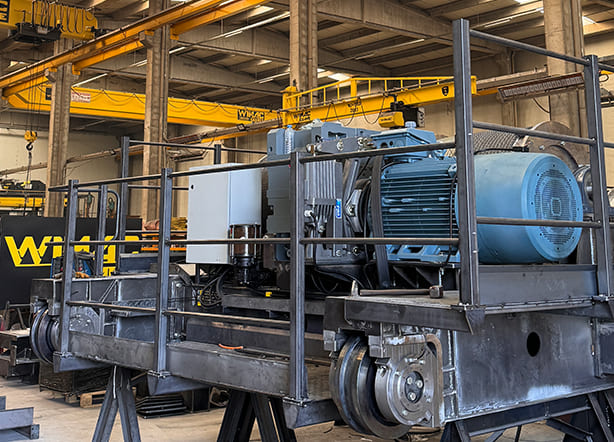

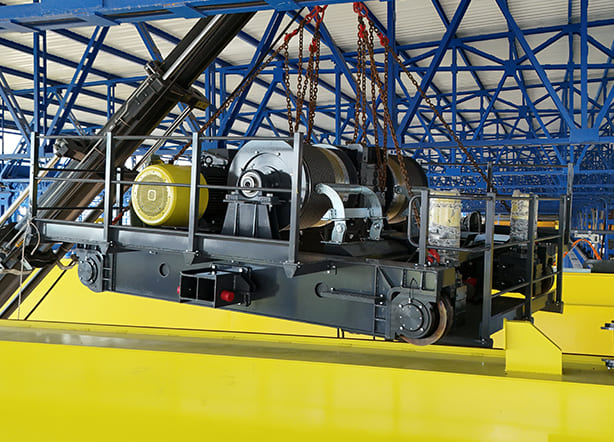

Wimac heavy duty hoists are purpose-built for the most demanding industrial applications including steel mills, foundries, and heavy manufacturing. These robust units handle extreme loads with precision and reliability.
Featuring twin drum configurations, multiple rope falls, and reinforced components, our heavy duty hoists deliver exceptional performance in high-temperature environments and continuous duty cycles. Custom engineered to meet specific process requirements.
Key Features & Benefits
Additional Information
- Available in ladle, charging, stripper, and casting configurations
- Heat shields and cooling systems for high-temperature applications
- Auxiliary hoists available for tilting and positioning
- Full engineering and installation support provided

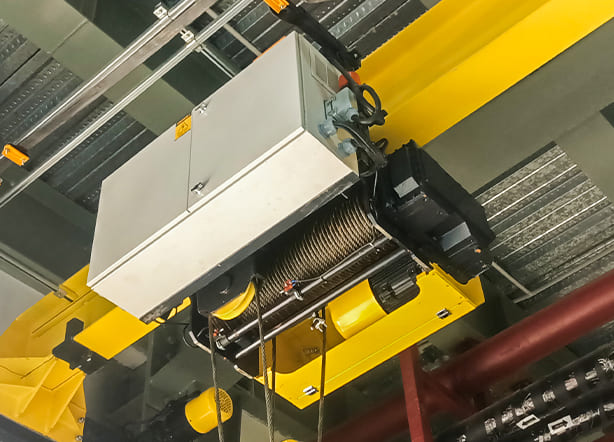

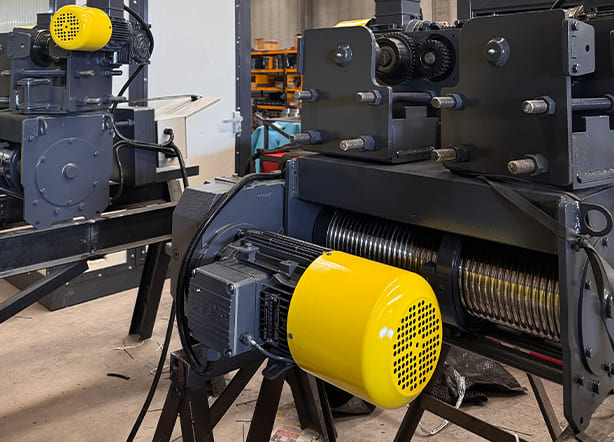

Standard Monorail Hoist
Standard monorail hoist operates directly beneath the runway beam. The load and hoist weight are evenly balanced, eliminating the need for a counterweight and making this type of hoist lighter than a low headroom model.
Our standard monorail hoists feature advanced rope guide systems, high-efficiency motors, and robust gearboxes built to withstand continuous operation in demanding industrial environments. Available in capacities from 1.6 to 20 tons with lifting heights up to 12 meters.
Key Features & Benefits
Technical Specifications
| Capacity SWL (Ton) | Serial Number | Drum Diameter (mm) | Wire Diameter (mm) | Hook P Class | Trolley Weight (kg) | Lifting Speed (m/min) | Lifting Motor Power (kW) | Trolley Wheel Diameter (mm) | Trolley Wheel Bearings | Trolley Drive Motor Power (kW) | End Truck Wheel Diameter (mm) | End Truck Wheel Bearings | Cross Travel Motor Power (kW) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.6 | WO-S16 | 160 | 8 | Nr1 | 550 | 4 | 1.10 | Ø100 | 6205-2RS | 2×0,25 | Ø160-125 | 6308 | 2X0.55 |
| 3.2 | WO-S32 | 160 | 8 | Nr2.5 | 550 | 0,7-3,5 | 2.20 | Ø100 | 6205-2RS | 2×0,25 | Ø160-125 | 6308 | 2X0.55 |
| 5 | WO-S50 | 220 | 10 | Nr4 | 600 | 4 | 4 | Ø130 | 6206-2RS | 2×0,37 | Ø200-170 | 6310 | 2x0.55 |
| 6.3 | WO-S63 | 220 | 12 | Nr4 | 750 | 4.3 | 5.5 | Ø160 | 6207-2RS | 2×0,37 | Ø200-170 | 6310 | 2x0.75 |
| 8 | WO-S80 | 270 | 14 | Nr5 | 800 | 3.5 | 5.5 | Ø160 | 6207-2RS | 2×0,55 | Ø200-170 | 6310 | 2X0.75 |
| 10 | WO-S100 | 270 | 14 | Nr6 | 1000 | 3.5 | 7.5 | Ø160 | 6207-2RS | 2×0,55 | Ø240-200 | 22210 | 2x11 |
| 12.5 | WO-S125 | 360 | 16 | Nr8 | 1250 | 4.1 | 11.0 | Ø200 | 6209-2RS | 2×0,75 | Ø240-200 | 22210 | 2x11 |
| 16 | WO-S160 | 360 | 18 | Nr10 | 1500 | 3.5 | 11.0 | Ø300 | 6213-2RS | 2×0,75 | Ø300-250 | 22212 | 2x15 |
| 20 | WO-S200 | 400 | 20 | Nr12 | 1750 | 3.9 | 15.0 | Ø300 | 6213-2RS | 2×1,1 | Ø300-250 | 22212 | 2X2.2 |
The products specified in the table above are compatible with FEM M5 & ISO 2m standards.
Additional Information
- The static test load is SWL × 1.25 / dynamic test load is SWL × 1.10
- The products above have a lifting height between 6 and 12 meters
- The products above have a long travel speed of 30 m/min & a cross travel speed of 20 m/min
- Module and number of teeth to be stated with order. Tooth form according to DIN 867 without profile correction. Pressure angle 20 degree.
Low Headroom Monorail Hoist
A low headroom hoist is the ideal solution for buildings with limited height. It maximizes space efficiency by allowing the hook to reach almost directly beneath the beam. Compared to a standard hoist, this design optimizes building height without compromising performance.
The offset drum design and compact configuration make these hoists perfect for retrofitting existing facilities or new constructions where ceiling height is at a premium. Available in capacities from 1.6 to 10 tons.
Key Features & Benefits
Technical Specifications
| Capacity SWL (Ton) | Serial Number | Drum Diameter (mm) | Wire Diameter (mm) | Hook P Class | Trolley Weight (kg) | Lifting Speed (m/min) | Lifting Motor Power (kW) | Trolley Wheel Diameter (mm) | Trolley Wheel Bearings | Trolley Drive Motor Power (kW) | End Truck Wheel Diameter (mm) | End Truck Wheel Bearings | Cross Travel Motor Power (kW) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.6 | WU-S 16 | 160 | a8 | Nr1 | 550 | 4 | 1.10 | Ø100 | 6205-2RS | 2 x 0,25 | Ø130 | 6206 | 2x0,55 |
| 3.2 | WU-S 32 | 160 | 8 | Nr2.5 | 550 | 0.7-3.5 | 2.20 | Ø100 | 6205-2RS | 2 x 0,25 | Ø130 | 6206 | 2x0,55 |
| 5 | WU-S 50 | 220 | 10 | Nr4 | 600 | 4 | 4 | Ø130 | 6206-2RS | 2 x 0,37 | Ø160 | 6207 | 2x0,55 |
| 6.3 | WU-S 63 | 220 | 12 | Nr4 | 750 | 4.3 | 5.5 | Ø160 | 6207-2RS | 2 x 0,37 | Ø200 | 6209 | 2x0,75 |
| 8 | WU-S 80 | 270 | 14 | Nr5 | 800 | 3.5 | 5.5 | Ø160 | 6207-2RS | 2 x 0,55 | Ø300 | 6213 | 2x0,75 |
| 10 | WU-S 100 | 270 | 14 | Nr6 | 1000 | 3.5 | 7.5 | Ø160 | 6207-2RS | 2 x 0,55 | Ø300 | 6213 | 2x1,1 |
The products specified in the table above are compatible with FEM M5 & ISO 2m standards.
Additional Information
- The static test load is SWL × 1.25 / dynamic test load is SWL × 1.10
- The products above have a lifting height between 6 and 12 meters
- The products above have a long travel speed of 30 m/min & a cross travel speed of 20 m/min
- Module and number of teeth to be stated with order. Tooth form according to DIN 867 without profile correction. Pressure angle 20 degree.
Explosion-Proof Wire Rope Hoists
Wimac explosion-proof hoists are ATEX certified for safe operation in hazardous environments where explosive gases, vapors, or dust may be present. Every component is designed and certified to prevent ignition sources in classified areas.
Our Ex-proof hoists comply with ATEX Directive 2014/34/EU and are available for Zone 1, Zone 2, Zone 21, and Zone 22 applications. Ideal for oil & gas, chemical processing, pharmaceutical, and grain handling industries. With flameproof motor enclosures, increased safety junction boxes, and intrinsically safe control circuits, these hoists provide reliable lifting solutions in the most demanding hazardous environments.
