Ex-Proof Cranes & Hoists

As Wimac Crane Systems, our ex-proof crane can easily transport and safely lifting moments.You may get most efficient from our ex-proof cranes in the extrimest conditions. Through the Wimac Ex-proof Cranes, you may utilise it at the high risk plantes of burning and plants could explode.

The panel and wiring are specially designed and protected for the enterprises.

All ex-proof cranes that we manufacture are used in accordance with FEM, DIN and ISO norms. We also use the same quality and standard in all our products with our CE and ISO certificates.

Our ex-proof cranes are controlling by remote controls systems. Besides the reducers and motors supply the soft take offs and stops through those high quality products.

All of our ex-proof cranes are designed according to usage area. Our Ex-proof cranes offer special primer and paint applications based on working conditions and take precautions against corrosion at world standards.

Wimac Ex-Proof Crane Double Girder Crane Trolley

Cross Travel Wheels

For a wide range of applications in explosive atmospheres, robust and long-lasting cast iron running wheels can be used. In special cases, for operating speeds of 1 m/s and above, running wheels made from solid brass are optionally available to provide additional spark protection; however, this option involves increased maintenance requirements.

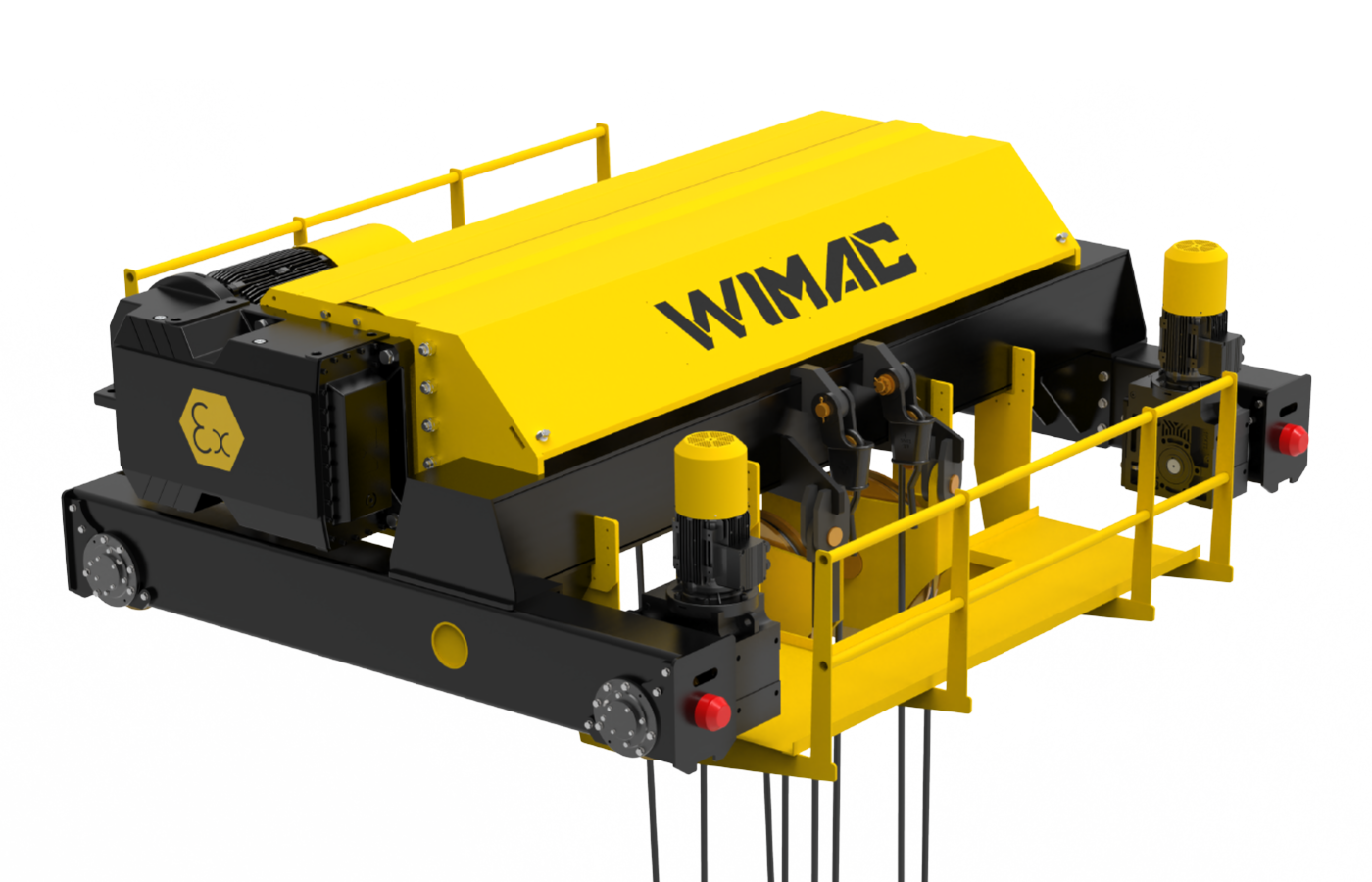

Wimac Ex-Proof Double Girder Crane Trolley — 50t

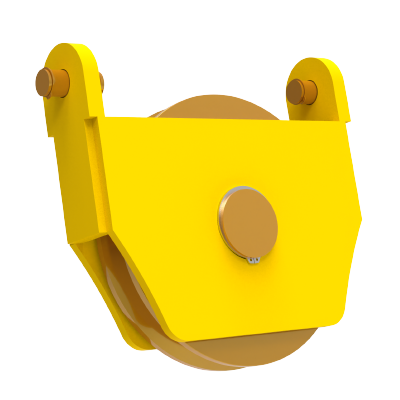

Sheave
Ex-Proof Sheave
Rope Guide
Ex-Proof Rope Guide
Trolley side view

Ex-Proof Hook

Explosion-proof lifting equipment is specially designed to avoid creating sparks, heat, or friction.

Ex-Proof hook variant 1 Ex-Proof hook variant 2 Ex-Proof hook variant 3 Ex-Proof hook variant 4 Ex-Proof hook variant 5
Wimac Ex-Proof Crane Standard Monorail Hoist

Cross Travel Wheels

For a wide range of applications in explosive atmospheres, robust and long-lasting cast iron running wheels can be used. In special cases, for operating speeds of 1 m/s and above, running wheels made from solid brass are optionally available to provide additional spark protection; however, this option involves increased maintenance requirements.

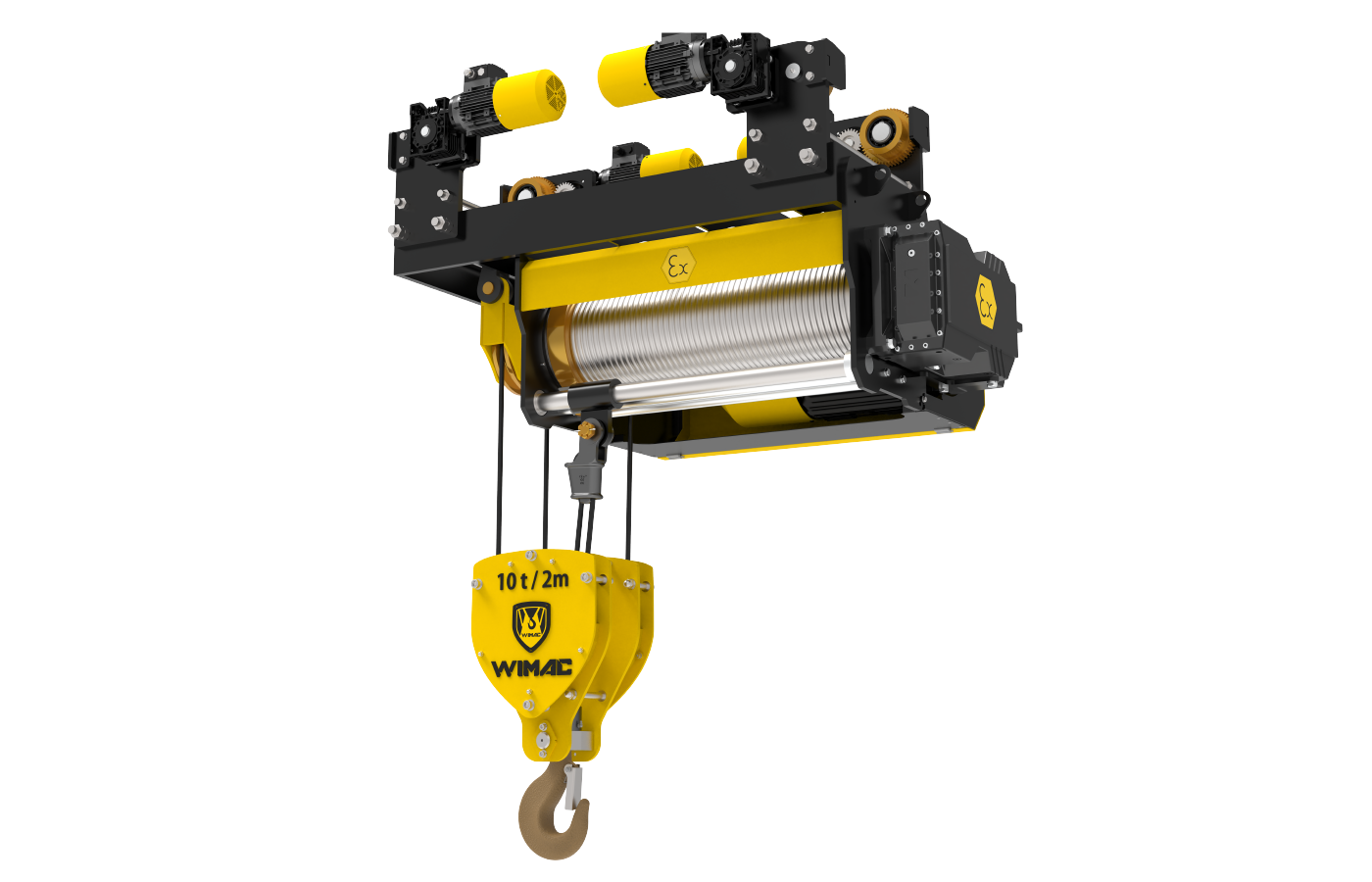

Wimac Ex-Proof Standard Monorail Hoist — 10t / 2m
Cross travel wheel detail
Sheave
Ex-Proof Sheave
Rope Guide
Ex-Proof Rope Guide

Ex-Proof Hook

Explosion-proof lifting equipment is specially designed to avoid creating sparks, heat, or friction.

Ex-Proof hook variant 1 Ex-Proof hook variant 2 Ex-Proof hook variant 3 Ex-Proof hook variant 4 Ex-Proof hook variant 5
Wimac Ex-Proof Crane Low-Headroom Monorail Hoist

Cross Travel Wheels

For a wide range of applications in explosive atmospheres, robust and long-lasting cast iron running wheels can be used. In special cases, for operating speeds of 1 m/s and above, running wheels made from solid brass are optionally available to provide additional spark protection; however, this option involves increased maintenance requirements.

Wimac Ex-Proof Low-Headroom Monorail Hoist — 12.5t
Sheave
Ex-Proof Sheave
Rope Guide
Ex-Proof Rope Guide

Ex-Proof Hook

Explosion-proof lifting equipment is specially designed to avoid creating sparks, heat, or friction.

Ex-Proof hook variant 1 Ex-Proof hook variant 2 Ex-Proof hook variant 3 Ex-Proof hook variant 4 Ex-Proof hook variant 5
Specifications

Common Technical Parameters

Reference specifications applicable across the Ex-Proof crane range. Custom configurations available on request.

Ex-Proof Crane & Hoist Specifications
Hazardous ZonesZones 1 and 2 (gas) / Zones 21 and 22 (dust)
Gas GroupsIIA, IIB, IIC
Dust GroupsIIIA, IIIB, IIIC
Temperature ClassesT1 – T6 (max surface temperature)
Equipment Protection Level (EPL)Gb / Db (Zone 1 / 21) · Gc / Dc (Zone 2 / 22)
Protection ConceptsEx d (flameproof enclosure) · Ex e (increased safety) · Ex tb (dust enclosure)
Cross Travel WheelsCast iron (standard) / Solid brass (optional, ≥ 1 m/s)
Hook BlockNon-sparking, ATEX-certified Ex-proof construction
ComplianceEU Directive 94/9/EC (ATEX) · IECEx · IEC 60079 · FEM · EN

Need a custom configuration?

Specify your zone, gas/dust group and temperature class — we'll build to spec.
